OAuth 2.0 Connection in MuleSoft

Harimurugan

• 5 min read
OAuth 2.0 Connection in MuleSoft
OAuth 2.0 Connection in MuleSoft

Transform your Mule 4 applications into fortresses of data security with the captivating power of OAuth 2.0 Implementation using Mule OAuth 2.0 Provider. Enable seamless authentication and authorization, ensuring secure access tokens flow efficiently across your API endpoints. Mule's dynamic capabilities make configuring OAuth 2.0 flows a breeze, ensuring a spellbinding balance of accessibility and protection.

Mule OAuth 2.0 provider module

The Mule OAuth 2.0 Provider module, available on Anypoint Exchange, transforms a Mule Application into an OAuth provider, playing a key role in the OAuth 2.0 implementation. This module enables the application to authenticate clients, issue tokens, validate tokens and manage client registrations or deletions within a flow. With four essential operations,

1. CREATE CLIENT

2. DELETE CLIENT

3. VALIDATE TOKEN

4. REVOKE TOKEN

This module provides a comprehensive toolkit for building secure, OAuth 2.0-compliant authentication and authorization processes seamlessly into Mule applications.

Prerequisites

  • Create a Mule project in Anypoint studio and name it as you like.
  • Search and add OAuth 2.0 provider module from Anypoint Exchange.

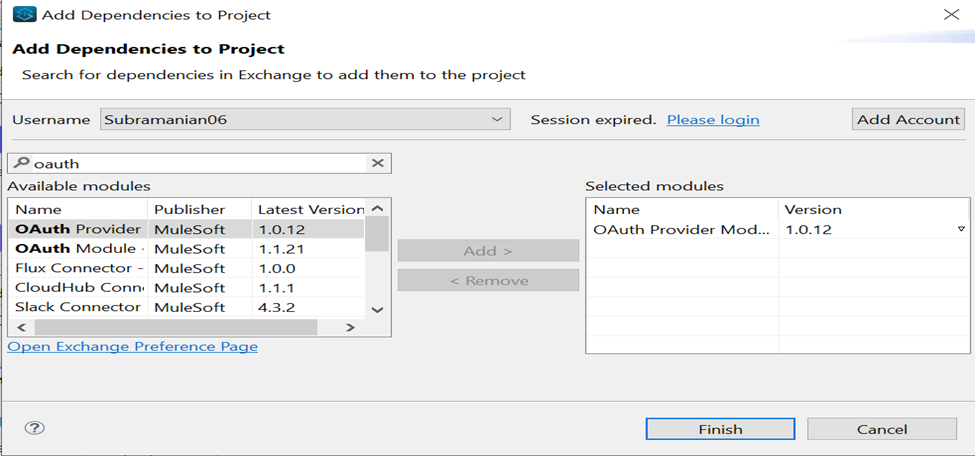

Way to add OAuth dependencies

Implement Mule OAuth 2.0 Provider

  • Now drag HTTP Listener component from mule palette.

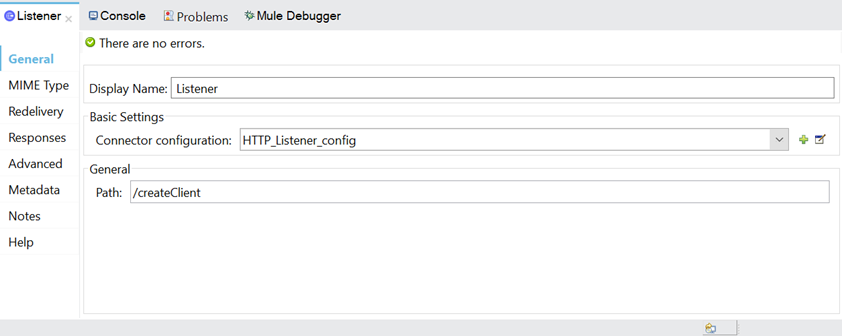

  • Configure HTTP Listener Global configuration with default values and set path as /createClient.
Configuring Listener

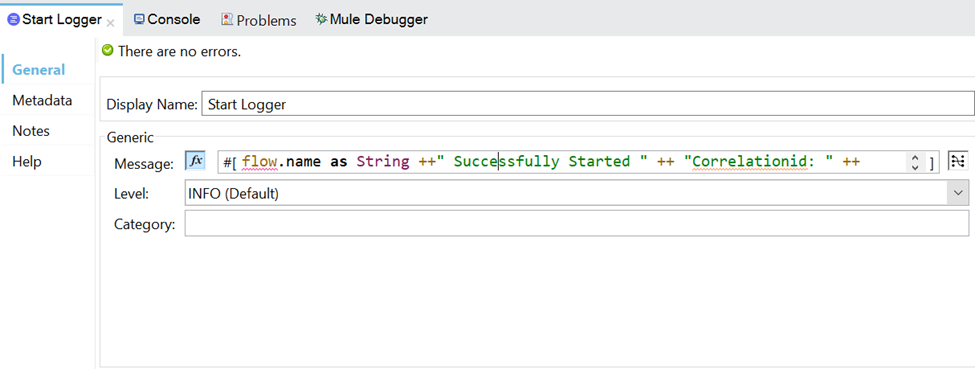

  • You can place a logger at the beginning of the flow.
Configuring Dataweave
  • Create two object stores in which ‘client credentials’ and ‘tokens’ are stored.
Object store configuration

Mule 4 allows easy interaction with object storage services, enabling efficient storage and retrieval of data. With streamlined payload transformation, robust exception handling, secure credential management and enhanced logging capabilities, Mule 4 ensures smooth integration workflows. It supports features like versioning, metadata handling and batch processing for optimal data management. Mule 4's advanced capabilities make it a powerful tool for developers orchestrating interactions with object stores in modern integration scenarios.

  • Listener config: HTTP listener configuration through which Mule OAuth 2.0 provider is listening.

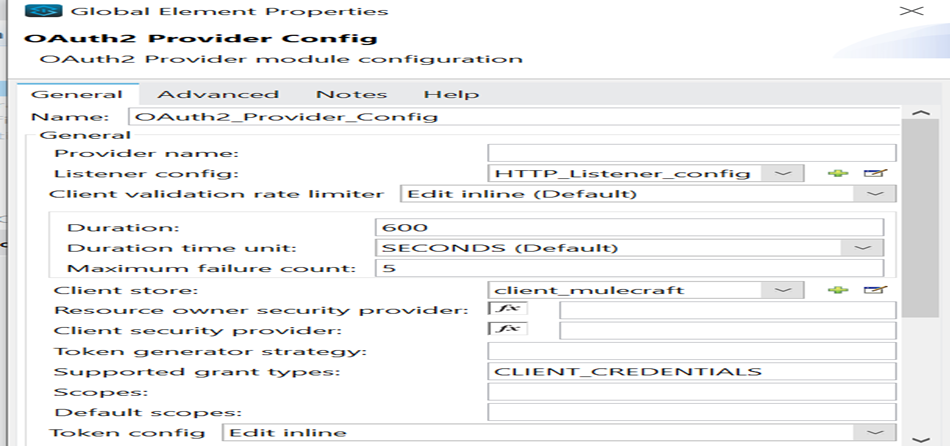

OAuth2 Configuration
  • The Mule OAuth client store caches each valid client application (client credentials) for which a token is requested.

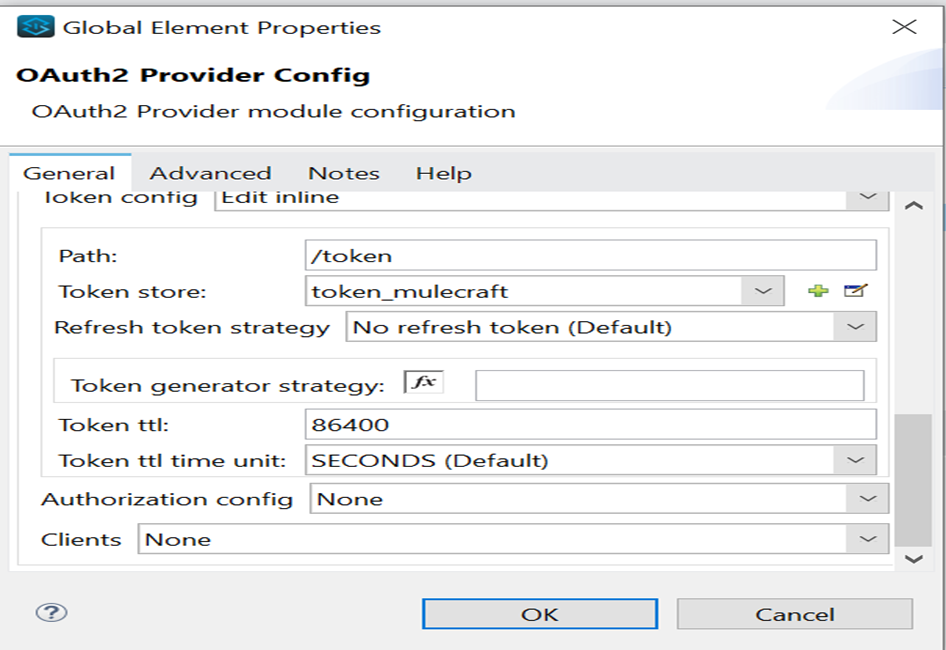

Pass the supported grant types as CLIENT_CREDENTIALS, path as /token to get the token and configure the token object store to store the token value, you can configure the token TTL as per requirement, I have kept is as default value and refresh token strategy as No Refresh Token as Default value

OAuth Configuration
  • Select the OAuth2 provider config created in module configuration tab.
  • Client id, client  secret, client name are passed from client as headers.
  • Description, principal and redirect URIs are hard coded. You can pass these values from client or hard code depends on requirement.
  • CLIENT_CREDENTIALS are used as Grant type.
  • No scopes are declared.
  • Type is selected as Confidential to maintain confidentiality of the credentials.
  • If Fail if present is ticked, it doesn’t allow to create duplicate clients.
  • Add a set payload component and set the value to Client created successfully.

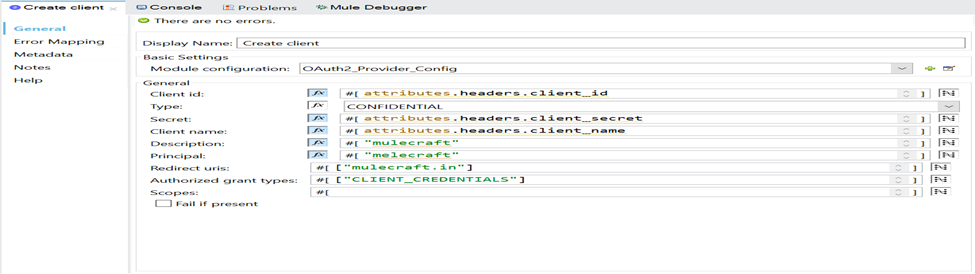

Create Client Properties

Create Client

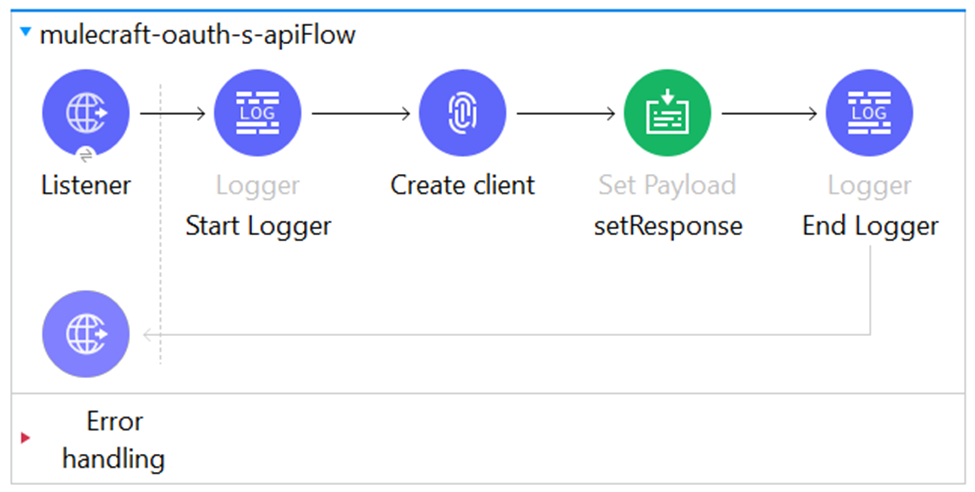

OAuth Flow

Validate Token

Create a flow and add HTTP listener with path /validate.

  • Add an HTTP listener config.
  • Add Validate token operation and fill the required fields.

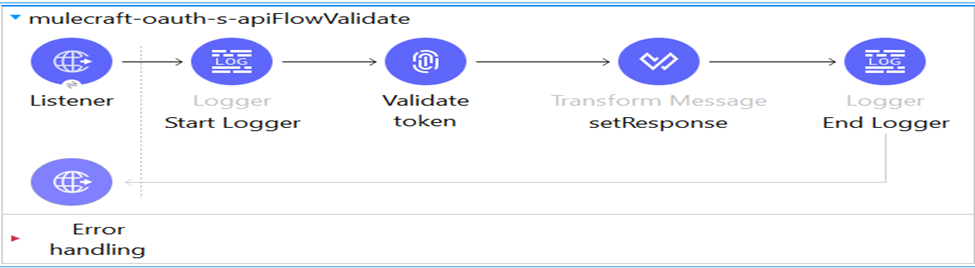

validation flow

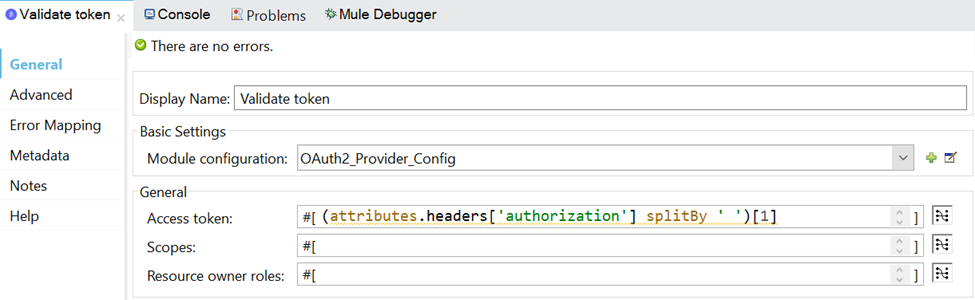

validate Token

Add OAuth 2.0 in raml

  • Modify the RAML of the mule application.

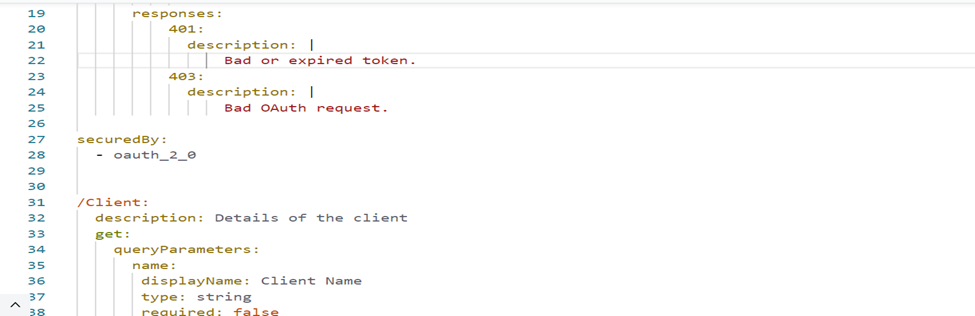

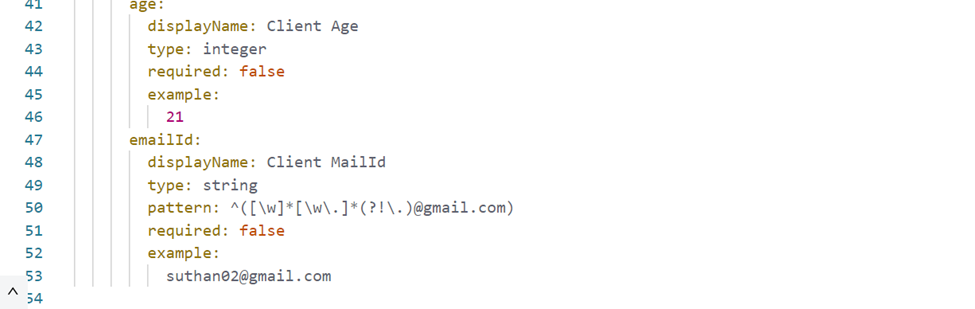

Raml configuration

Publish the modified RAML to exchange.

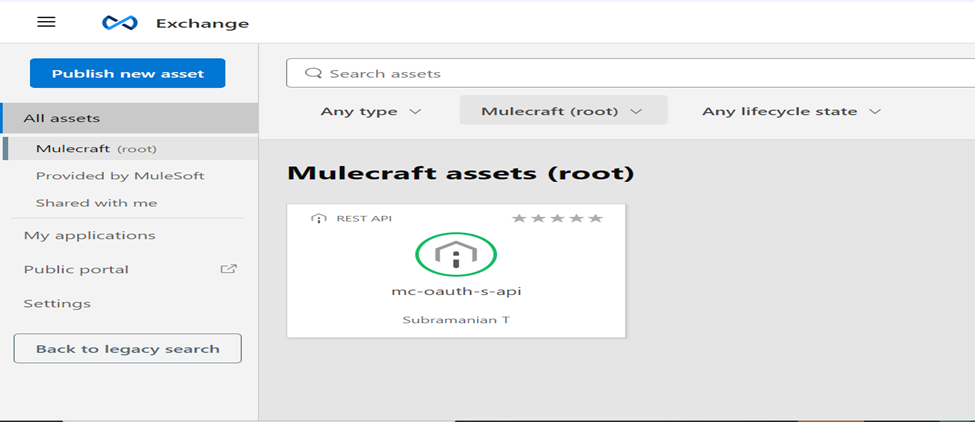

Publish view
  • Deploy your application in runtime manager.

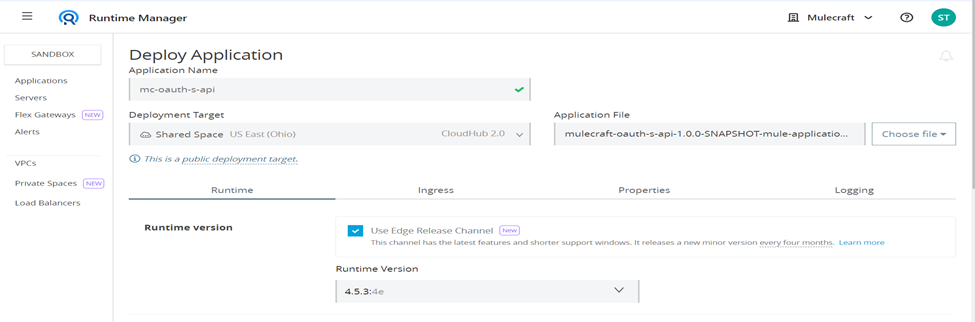

Deploying the OAuth Flow

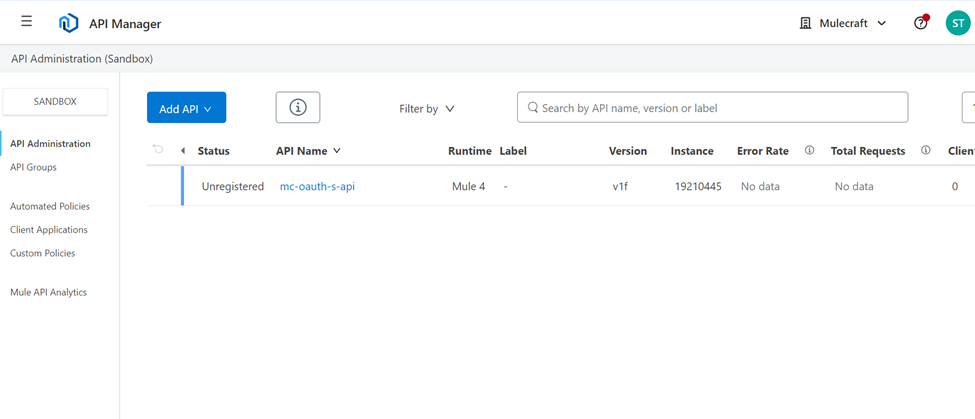

  • Add your application in API manager.
Deployed One
  • Add client_id and client_secret to properties in runtime manager from api manager.

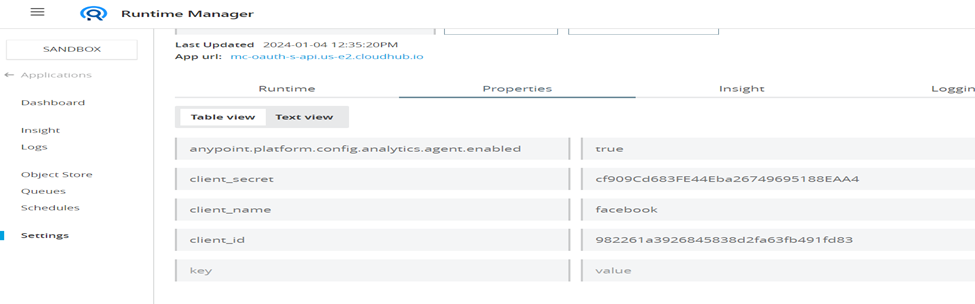

Adding Properties Insights
  • Add instance id from api manager to API auto discovery configuration in Anypoint studio.

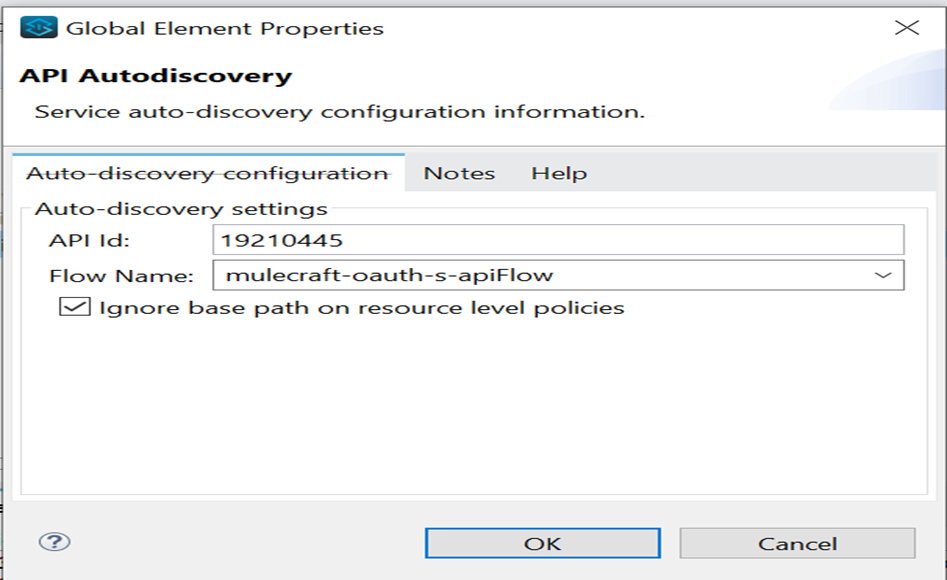

API Discovery
  • Lets test from POSTMAN.
  • Provide the client_id and client_secret generated.
  • Provide Grant Type as CLIENT_CREDENTIALS.
  • Provide the access token as Bearer token in Authorization field.
  • Set createClient as endpoint to successfully create a client.

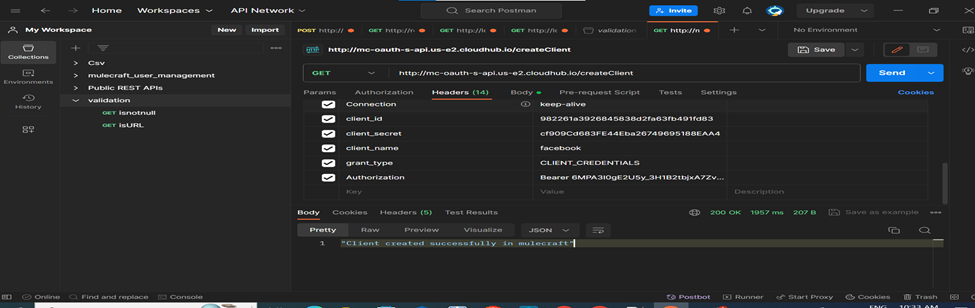

Postman view
  • Client credentials in object _clientStore last only for 30 days.
  • Instead of adding client credentials every time after 30 days, we can achieve auto refreshing of client credentials by creating a flow with Scheduler.

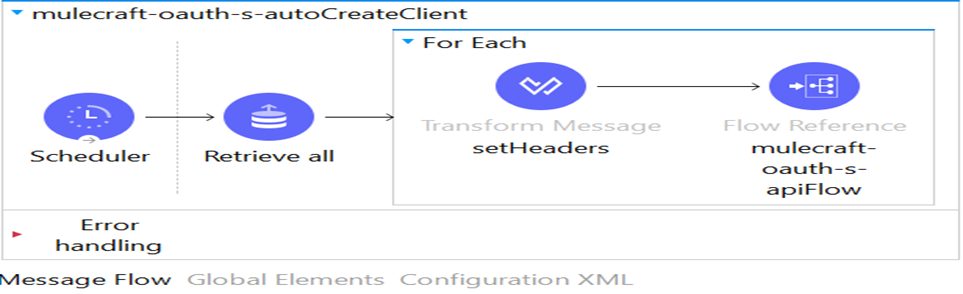

OAuth scheduler flow
  • Set the scheduler frequency to 20 days (or any number less than 30).

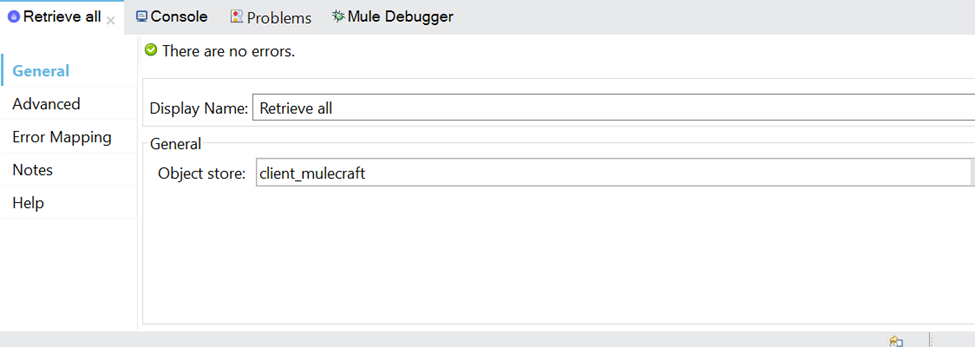

  • Retrieve all the the client_id’s from object _clientStore.
Object Store
  • Send each client id to create client flow using For Each.

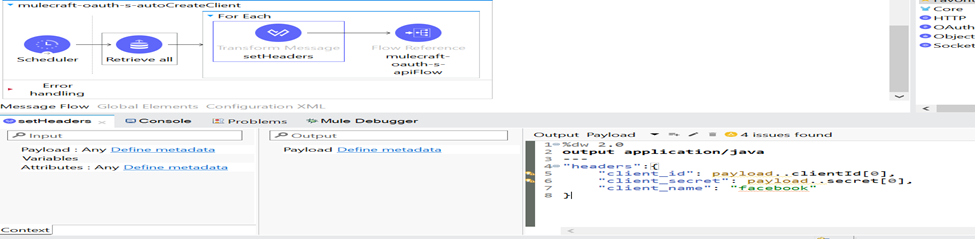

Payload transformation
API flow Properties

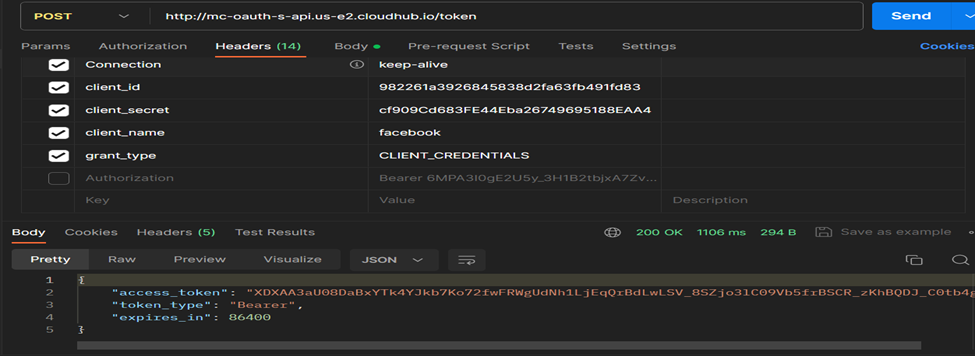

Get Access Token

Getting access token

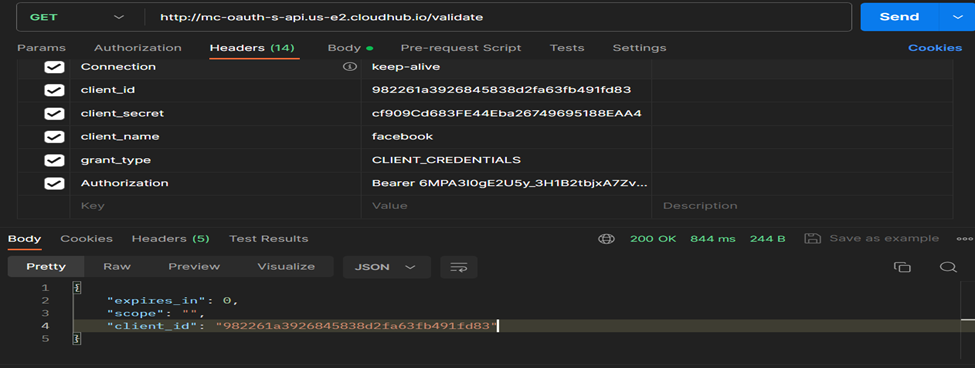

  • Set validate as endpoint to validate the token.
Token Validation

Conclusion

In conclusion, implementing an OAuth 2.0 provider for a blog ensures secure user authentication and controlled access. OAuth 2.0's standardized protocol enhances the security by using access tokens, reducing risks associated with unauthorized access. The user-friendly authorization process and consent mechanisms foster transparency, granting readers control over shared information. Its adaptability supports seamless integration with third-party applications, while token management features contribute to a robust security posture.

Elevate your Mule 4 projects with an enchanting layer of standardized, fortified security, where data protection becomes a magical journey guided by OAuth 2.0 protocols.
