Optimizing Messaging with Mule Solace: The Pub/Sub Approach

Nantha gopal K

• 4 min read
Optimizing Messaging with Mule Solace: The Pub/Sub Approach
Optimizing Messaging with Mule Solace: The Pub/Sub Approach

Introduction

The Solace PubSub+ Connector for Mule 4 is a powerful tool that seamlessly integrates the robust messaging capabilities of Solace's PubSub+ platform with the versatile MuleSoft Anypoint ecosystem. This connector enables developers to effortlessly create, publish, and subscribe to messages in real-time, ensuring smooth data flow and enhanced communication between applications.

With its user-friendly design and support for various messaging patterns, the Solace PubSub+ Connector not only simplifies the integration process but also empowers organizations to harness the full potential of event-driven architectures, making it an essential component for modern application development.

Key Concepts

  1. Messaging Patterns: The connector supports various messaging patterns, including publish/subscribe, point-to-point, and request/reply, allowing for flexible communication models tailored to application needs.
  2. Real-Time Messaging: Leveraging Solace’s event-driven architecture, the connector enables real-time data exchange, facilitating immediate responsiveness and improved user experiences.
  3. Integration with Anypoint Platform: The connector integrates seamlessly with MuleSoft's Anypoint Platform, allowing developers to easily manage and monitor integrations within a unified interface.
  4. Message Transformation: Utilizing MuleSoft's DataWeave capabilities, developers can transform messages as they flow between systems, ensuring data is formatted appropriately for each application's requirements.

Key Operations

  1. Publish to topic or queue (direct or persistent)
  2. Consume event/message (triggered consumer)
  3. Direct Topic Subscriber (push direct message consumer)
  4. Guaranteed Endpoint Listener
  5. Request-reply (synchronous wait for a reply to inflow)
  6. Ack to acknowledge messages anywhere in the Flow

Let’s Add the solace connector. We can add the connector in two different ways.

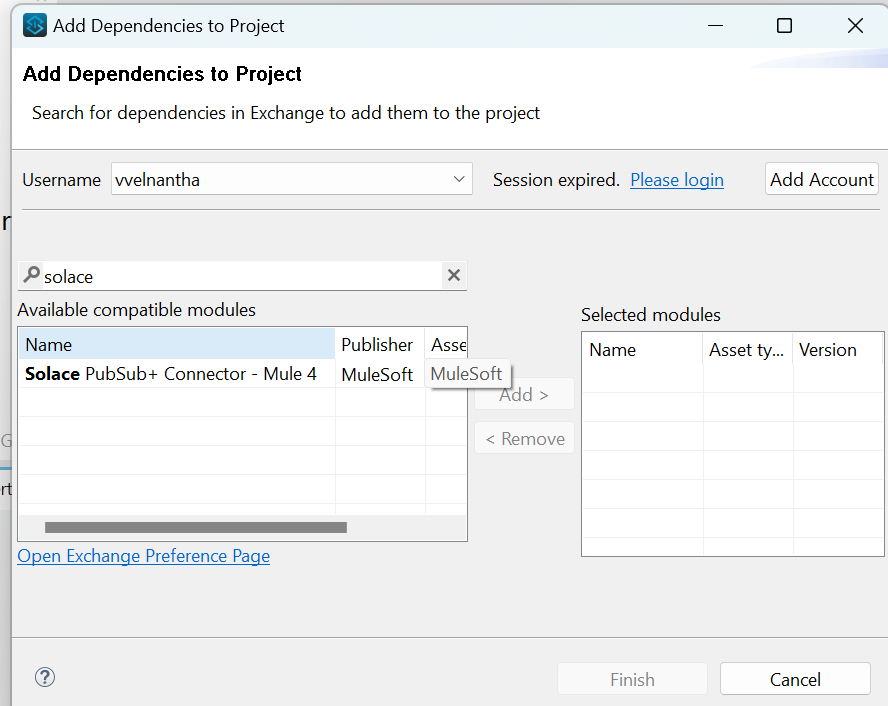

Using Anypoint Studio GUI(Add dependencies to project) - From the Mule Palette, select the first option. “Search in exchange” a window pops out; type “solace". Add the connector from available modules to selected modules and give "finish”.

Add the solace connector from available modules

By editing the POM.XML (Maven) file directly - Open the “pom.xml” file in your Mule project. Add the required dependencies within the <dependencies> section.

For solace connector add the below dependencies from this link.

<dependency>
  <groupId>com.solace.connector</groupId>
  <artifactId>solace-mulesoft-connector</artifactId>
  <version>1.0.0</version>
  <classifier>mule-plugin</classifier>
</dependency>

dependency

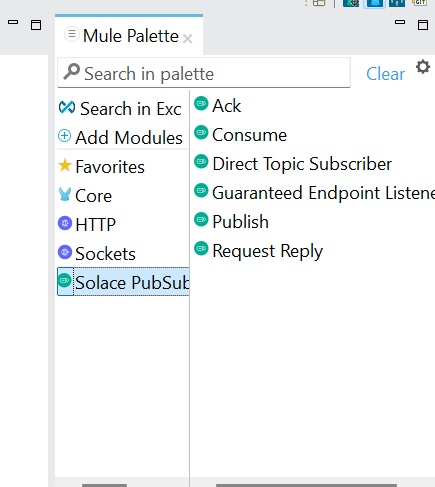

From either one of the ways, you can see the connector in the mule palette as shown below.

Solace Connector
  1. Follow up the link to create an account in solace. https://console.solace.cloud/login
  2. Navigate to cluster manager.

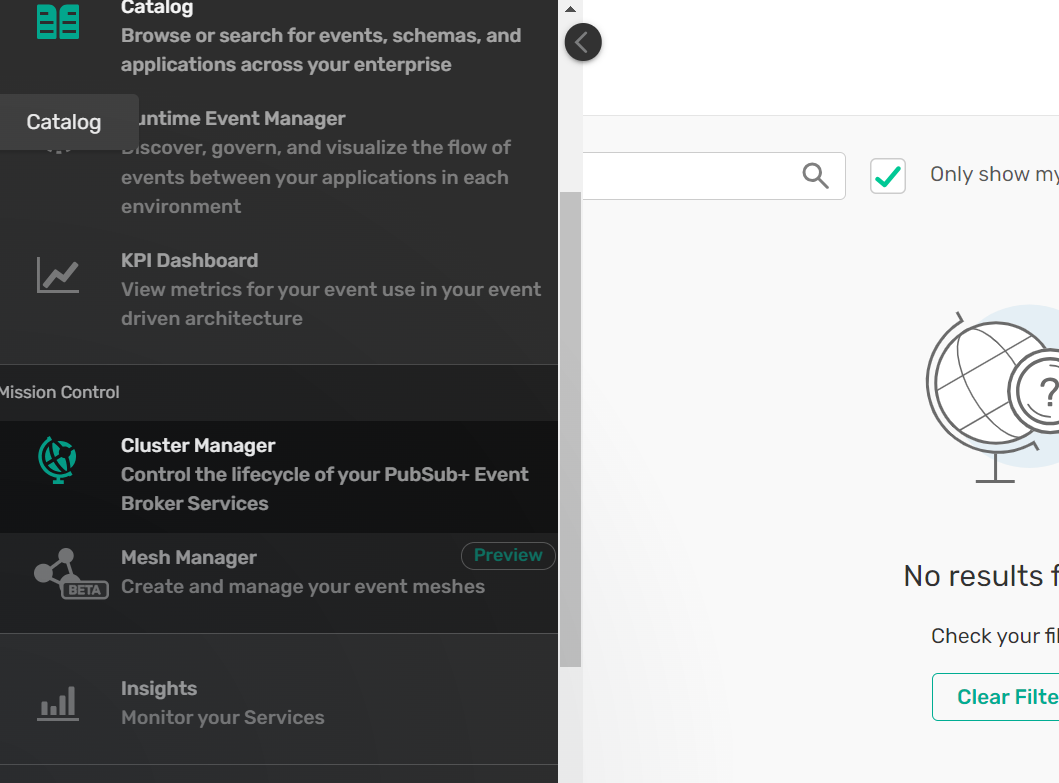

Cluster manager

Enter the basic details and click create service. It takes time to gear up and run.

Entered basic details

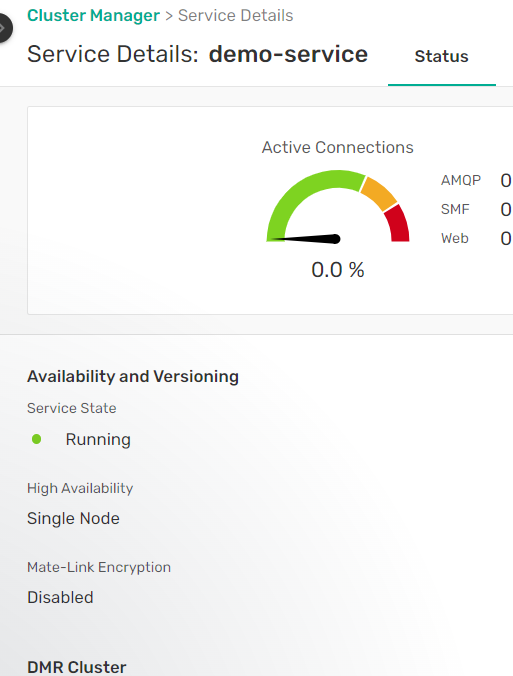

Service is up and running

Select the Solace JMS API and click get started.

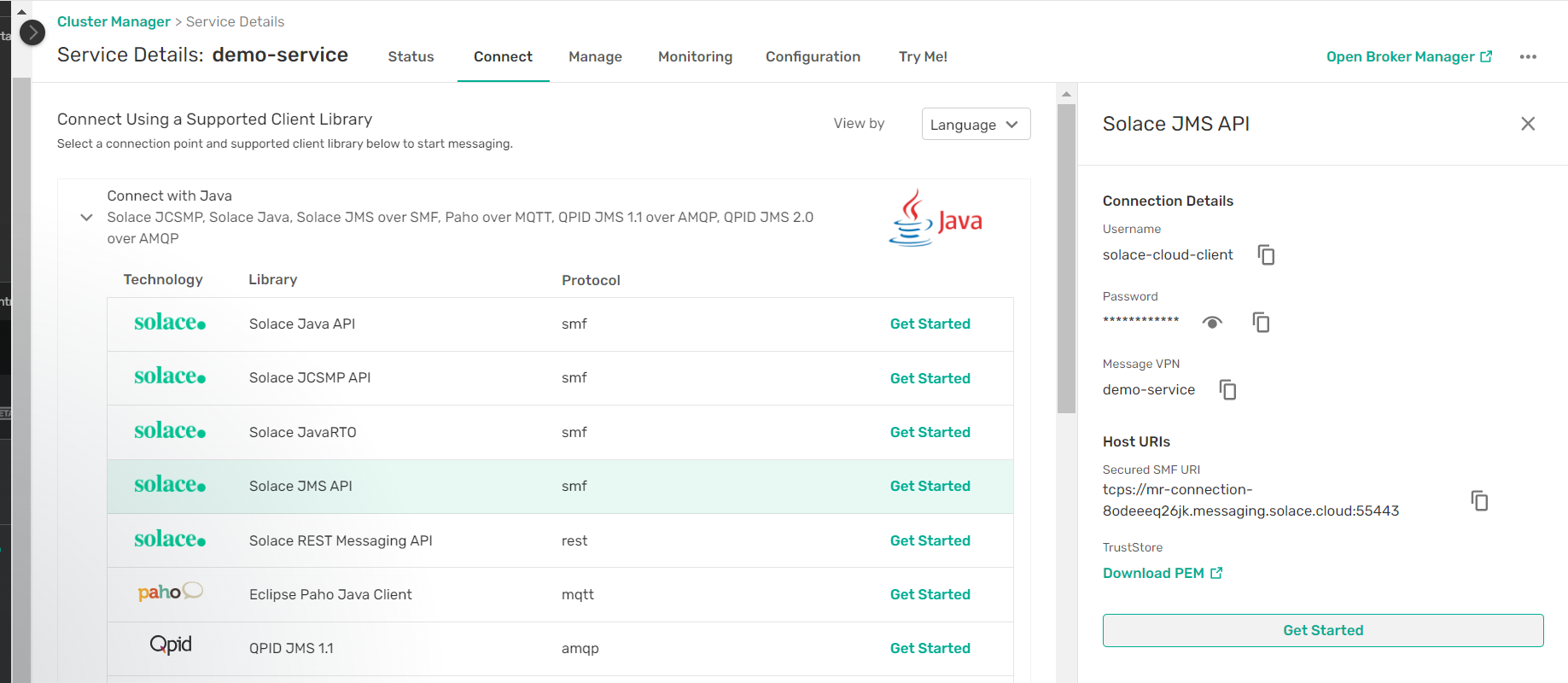

Credentials page

Let's create a queue and topic. Navigate to 'manage' and click 'Message VPN' which is under 'PubSub+ Broker Manager Quick Settings'. Then it will take you to the page of message service.

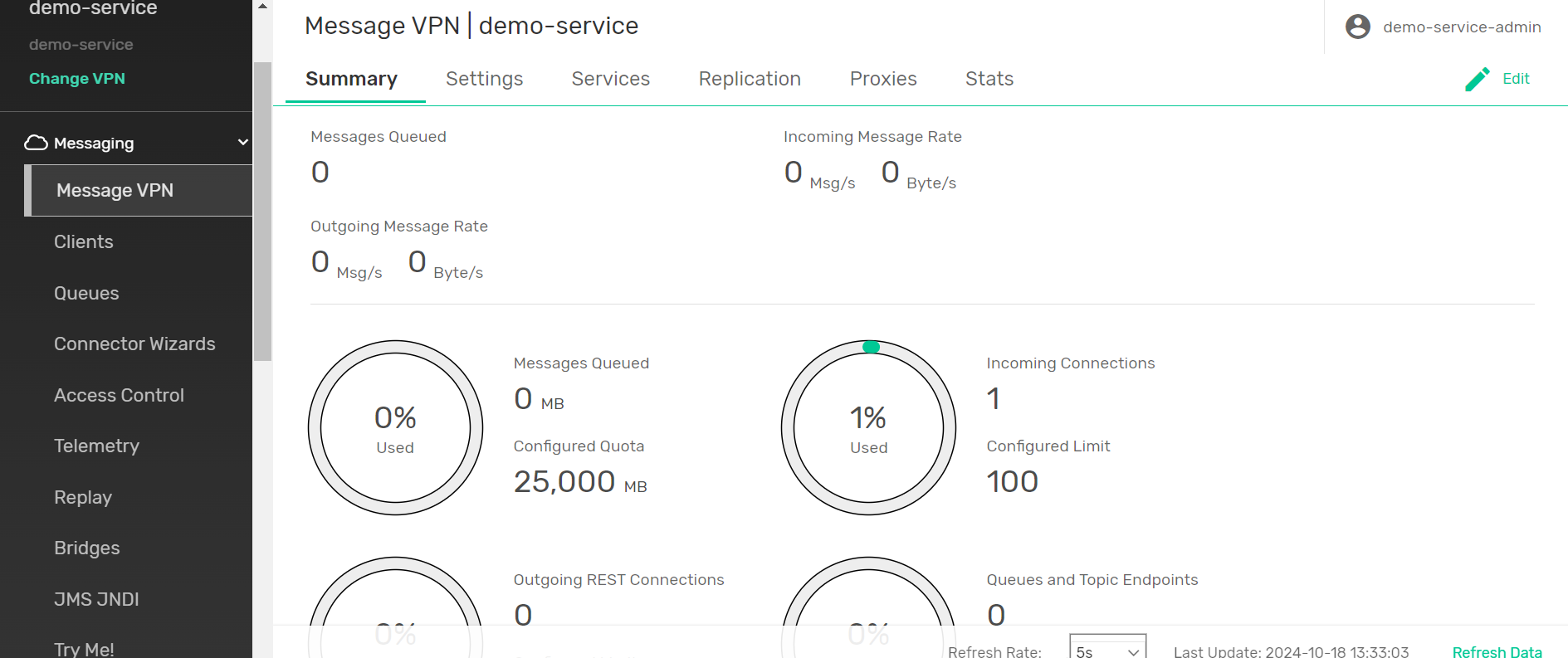

messaging service page
No queues available

Let's create a queue.

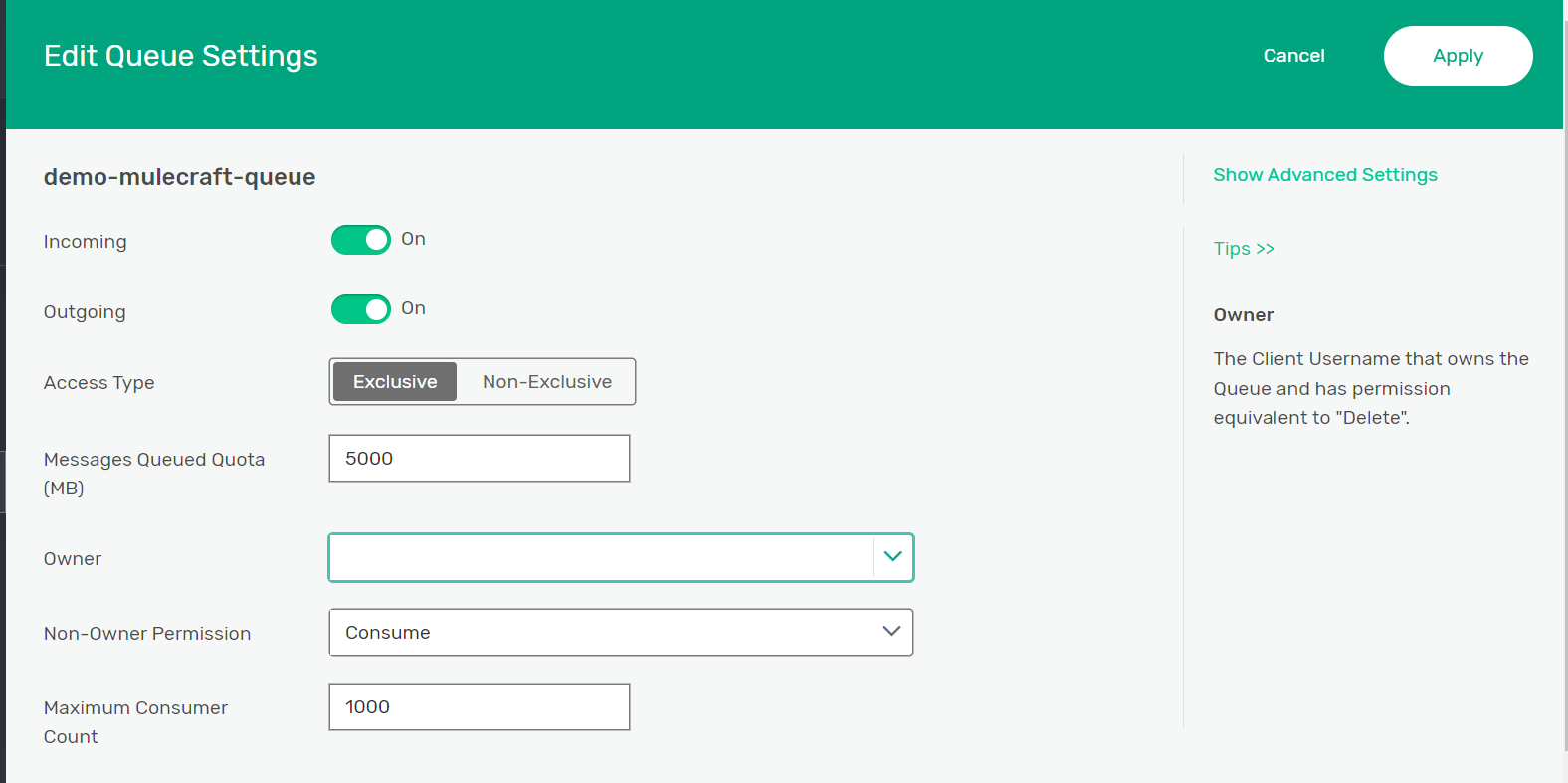

Click apply after Queue settings

Once we provide a queue name and leave the default values, we should click 'apply'.

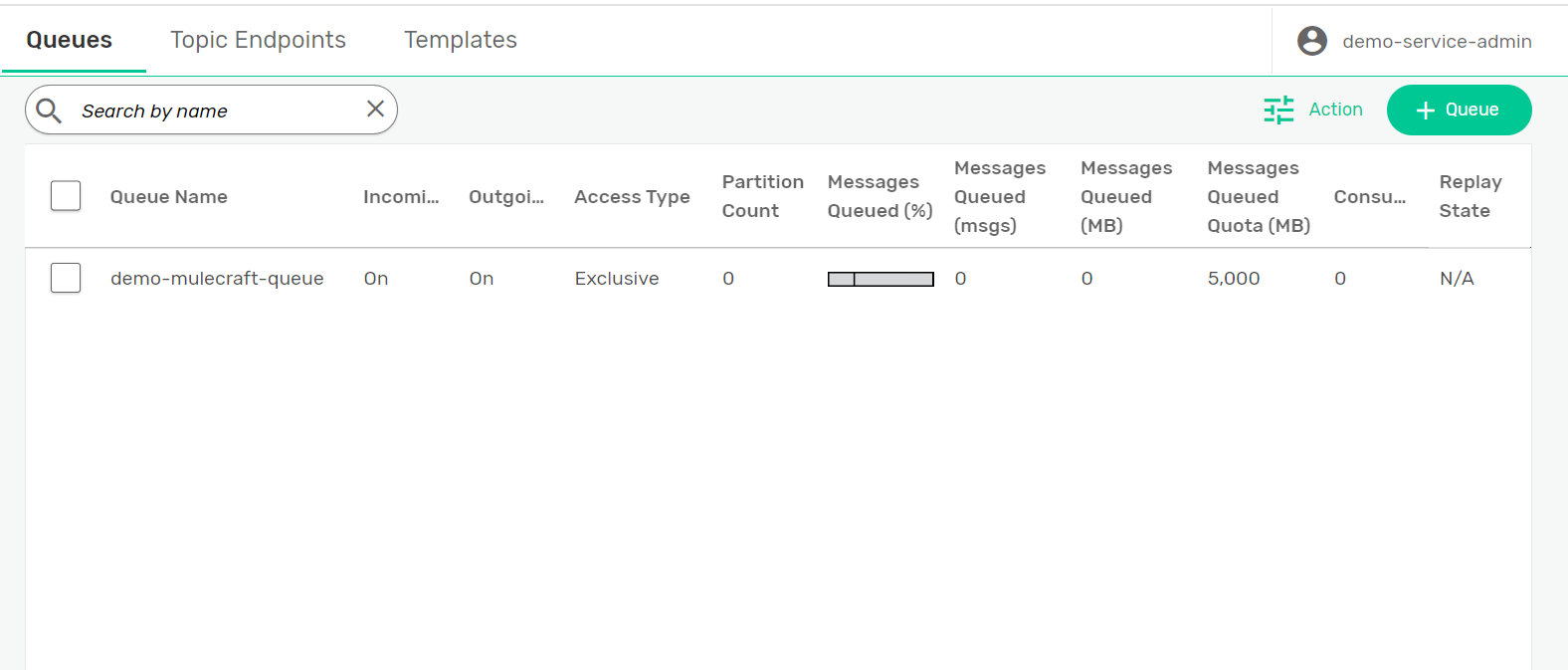

Queue created

Also, we will create the topic event. Fill the topic event name and proceed with default values and then click apply.

We have to create subscriptions for our 'demo-mulecraft-queue'.

Let's create the Mule app with solace queue and will do a test.

To create the solace config, we need the below details, we can get from Solace JMS API page.

Client username
Client password
Message VPN
Broker host

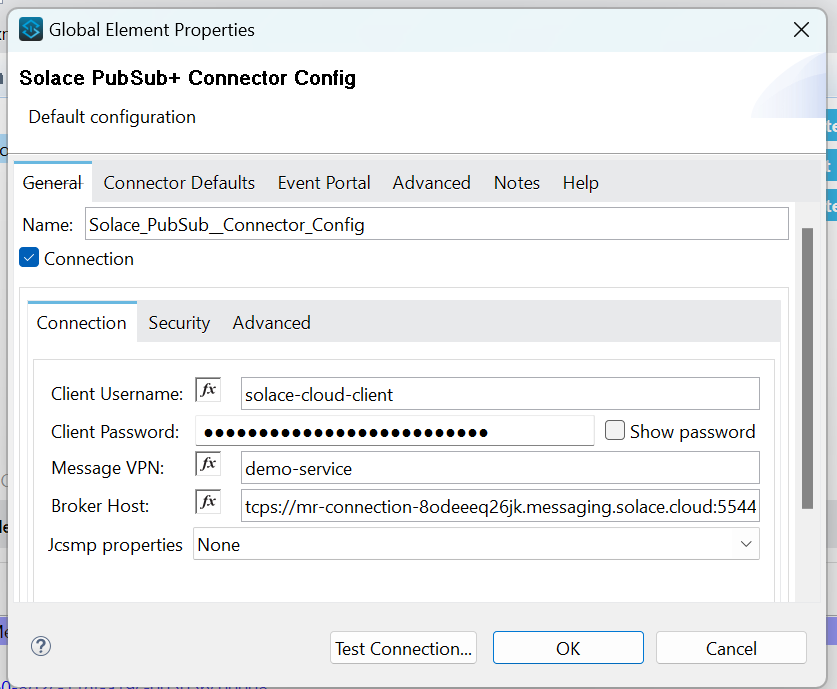

Solace basic Auth config

We have configured with basic authentication and can get the detail from solace JMS API page.

Config details

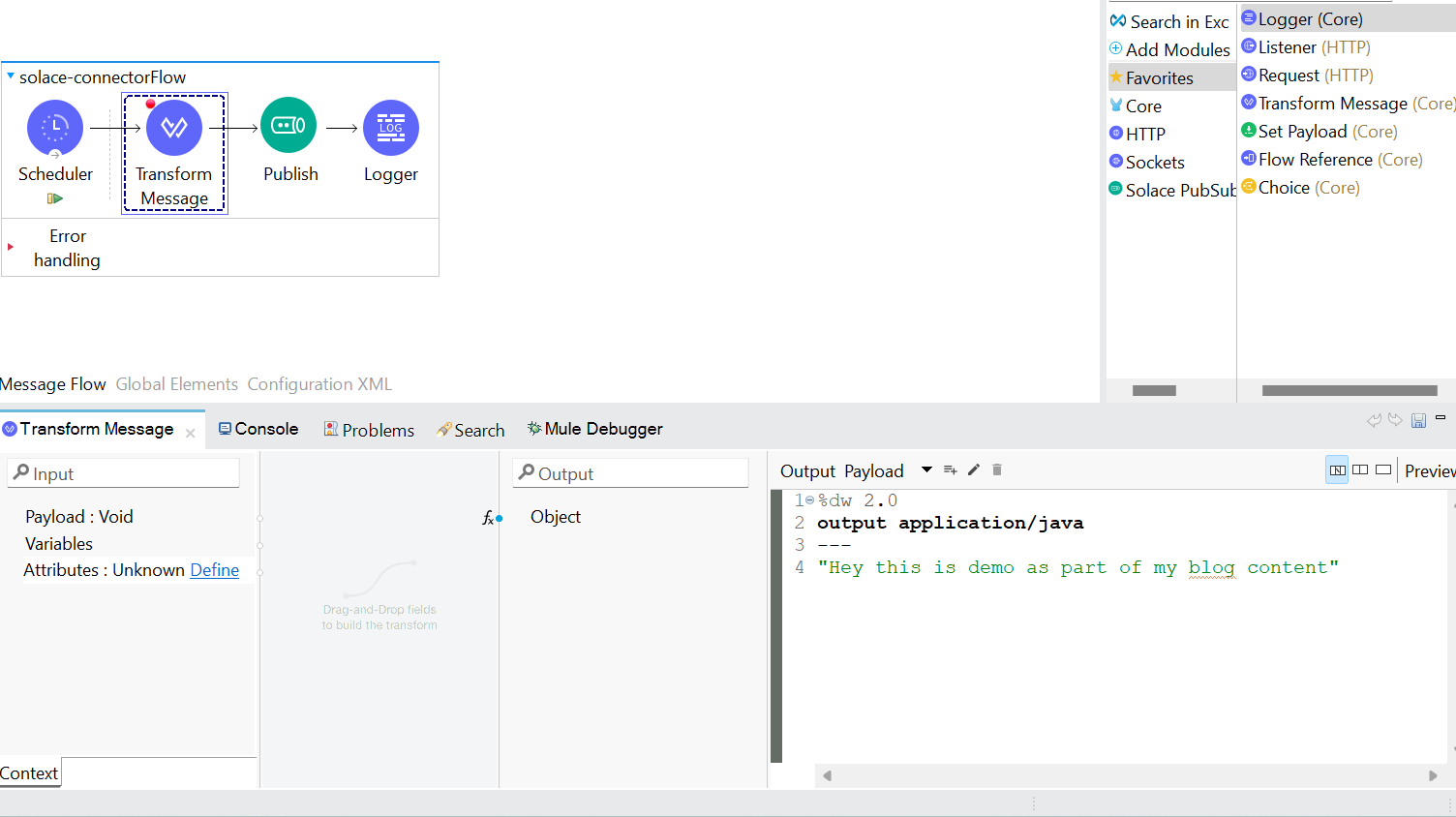

Pub flow

After successful configuration, we have created a flow which has message and publishes it in our queue. Once published we can see and confirm the message in the portal.

Published message in queue

Let's consume the message from that queue.

Consume message flow

As you seen in the picture we have consumed the message from our queue.

Conclusion

In conclusion, Solace Pub/Sub operations provide a powerful framework for building scalable, resilient, and efficient messaging systems. By leveraging the publish-subscribe model, organizations can facilitate real-time data distribution across diverse applications, ensuring that information reaches its intended audience with minimal latency.

The flexibility of Solace’s architecture allows for seamless integration with various protocols and platforms, enhancing interoperability in complex environments. As businesses increasingly rely on real-time data to drive decision-making and enhance customer experiences, adopting Solace Pub/Sub can be a game-changer.

In upcoming blogs, we will delve deeper into specific operations, including acknowledgment (ack), topic listeners, and request-reply patterns, to help you harness the full potential of Solace.
